Anti Vibration Pipe Support Design for Dynamic Stability

Vibration control protects piping that connects to compressors pumps and other rotating equipment. JSC Engineers integrates anti vibration support design directly into pipe stress analysis to ensure reliable code based performance under both static and dynamic conditions.

Understanding Pipe Movement and Support Selection

Piping systems experience multiple forces including weight pressure temperature change and environmental loads. Dynamic loads such as pressure pulsations mechanical excitation or transient flow can introduce vibration that leads to fatigue leaks or equipment damage.

Standard resting supports or spring hangers are suitable for static service but they are not sufficient for vibration. For reciprocating compressors and pumps recommended practice is to use rigid or dual purpose supports that combine restraint and damping. JSC Engineers evaluates both support type and location as part of dynamic stress simulations to minimize vibration response.

Key Factors in Anti Vibration Support Design

• Support stiffness K_support is a function of both clamp stiffness and supporting structure flexibility. Modeling the actual stiffness instead of assuming a perfectly rigid restraint prevents over conservative and under conservative load predictions.
• Friction behavior mu defines resistance to sliding motion and depends on interface materials. For example steel to steel is typically mu equals 0.3 while PTFE liners are near 0.1. JSC proprietary liners such as JSC VibraPad HD and JSC VibraPad HT can provide elevated friction where needed with typical design values up to 1.0 when paired with appropriate surface finishes.
• Clamp preload from bolt tightening increases normal force and therefore friction capacity. Modeling preload correctly avoids spurious stresses and unrealistic deflections.
• Contact gap is the free motion before the support engages. For high performance anti vibration clamps this is typically less than or equal to 1 over 16 inch which minimizes impact and rattle.

Modeling Anti Vibration Clamps in Pipe Stress Analysis

Modern PSA tools such as CAESAR II or AutoPIPE allow bilinear restraint definitions to represent the transition from stick to slip. This captures the moment when the friction limit is exceeded and the pipe slides which improves the match between simulation and field behavior.

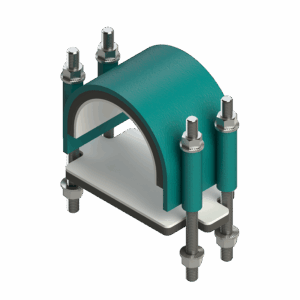

For systems using JSC specialty clamps such as the JSC QuietClamp family with VibraPad liners the effective stiffness is intentionally reduced in order to add damping and absorb vibration energy. In modeling we typically use one tenth of the base steel clamp stiffness for these damped supports and we verify the combined stiffness of clamp and structure rather than assuming an ideal fixed point.

Support Spacing and Frequency Sensitivity

Support spacing influences span frequency and deflection. For vibration sensitive service spacing often must be tighter than general code tables to avoid resonance near machinery running speed. JSC Engineers performs frequency checks along with code based span limits to balance flexibility cost and vibration control.

Common Design Values

Integrating Specialty Clamps into Delegated Support Design

In delegated design JSC Engineers specifies and verifies anti vibration clamps and slide shoes as part of a system level stress solution. Components are checked for static and dynamic loads with the correct preload stiffness and friction assumptions. We coordinate with fabricators to align installation torque liner selection anchor stiffness and structural details with the model inputs.

Conclusion

Anti vibration pipe supports are a critical part of piping system integrity in dynamic service. By combining code based pipe stress analysis with realistic support modeling and vibration engineering JSC Engineers delivers designs that reduce fatigue protect equipment and extend service life.
