Pipe Support Design in San Diego: Custom Riser Clamp Assemblies

Vertical pipe systems must be precise. Even a small amount of axial movement can cause serious issues. At JSC Engineers, we provide custom pipe support design solutions for high-pressure vertical systems in San Diego and throughout Southern California.

Why Vertical Pipe Support Matters

When vertical piping in a pressurized system begins to shift, everything below it can be affected. Problems like hanger misalignment, equipment failure, and jobsite delays can occur quickly. In extreme cases, the entire system may fail.

That’s why JSC Engineers designs riser clamp assemblies that control vertical loads. With decades of experience in petrochemical, synthetic gas, and industrial facilities, we help our clients avoid expensive repairs and downtime.

Purpose-Built for Axial Load Management

Riser clamp assemblies are not off-the-shelf parts. Instead, they are engineered to fit your exact needs. Each clamp is custom-built for the pipe diameter, temperature range, and design loads.

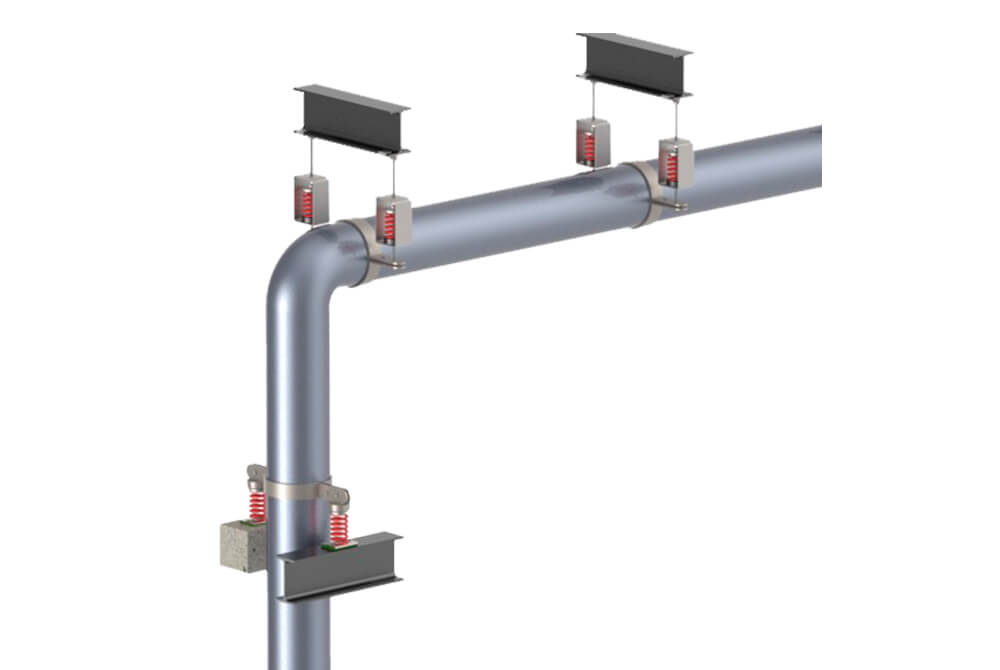

The core of the system includes a strong steel clamp placed around the pipe. It works with thrust plates to hold the pipe in place during thermal expansion or shifting. As a result, the piping remains aligned and secure.

For high-temperature systems, we often recommend A387 alloy steel. This material performs well in extreme heat, up to 1,000°F. We also specify coatings that resist breakdown, even under prolonged exposure to heat.

Real-World Example: Synthetic Gas Plant Retrofit

One of our clients, a synthetic gas facility in California, needed help during a retrofit project. Their vertical pipe system was exposed to intense heat and constant movement due to thermal cycling.

To solve the problem, JSC Engineers designed a riser clamp using A387 Grade 11 steel. We applied a high-temperature coating rated to 1,000°F. This clamp stopped the pipe from sliding during startup and kept the system aligned. It also reduced the risk of long-term damage and helped extend the lifespan of the piping.

Where Riser Clamps Are Commonly Used

Riser clamp assemblies are essential in a variety of systems, especially where thermal or vertical movement needs to be controlled. Some common applications include:

• Fired heater loops with high vertical temperatures
• Multi-level pipe racks in process and petrochemical plants
• Firewater systems on offshore platforms or high-rise buildings
• Steam lines in LNG facilities and other industrial plants
• Critical infrastructure in seismic or high-vibration zones

Key Benefits of JSC’s Riser Clamp Assemblies

• Stops pipe slippage caused by gravity or thermal expansion
• Custom-sized to match pipe OD and load requirements
• Available for pipe sizes up to 48 inches
• Designed for temperatures up to 1,000°F
• Validated with Finite Element Analysis (FEA)
• Fast fabrication and shipping to meet construction deadlines

Why Engineers and PMs Trust JSC

JSC’s riser clamps are designed to simplify field installation. Our solutions reduce the need for last-minute adjustments, prevent RFIs, and help projects stay on track.

Engineers rely on us for accurate load ratings, proper material selection, and clear documentation. Meanwhile, project managers appreciate the way our work minimizes schedule risks and keeps budgets in check.

Common Companion Supports

In many cases, riser clamp assemblies are just one part of a complete support system. We often pair them with:

• Variable and constant spring hangers
• Pipe shoes and insulated saddles
• Sway braces and struts for side-to-side control
• Hydraulic or mechanical snubbers for seismic restraint

Talk to a San Diego Pipe Support Engineer

If you need a custom riser clamp or help evaluating an existing support system, we’re here to help. JSC Engineers provides delegated pipe support design services throughout Southern California.

Request a quote or speak with an engineer today to get started on your next project.
